Case Study

Clarifying Identity Provider Behavior

tl;dr

I designed preventative UX around a technically correct but potentially disruptive identity-management behavior.

Research and Design 4 weeks

Preventing unexpected access changes in identity-provider managed teams.

While working on Kong’s Dev Portal, Product surfaced an unexpected behavior involving teams synchronized through an external identity provider (IdP).

Under certain conditions, developers who had previously been added to a team manually could silently lose their team membership after IdP team mapping was enabled. I investigated the behavior, worked with engineers responsible for identity and account management to understand the underlying model, and designed safeguards that made the transition from locally managed to IdP-managed teams explicit and predictable.

View the interactive prototype ↗

What initially looked like a system defect became a design challenge: helping administrators understand and anticipate behavior that was working as intended. The following story trace that shift and the decisions behind the resulting experience.

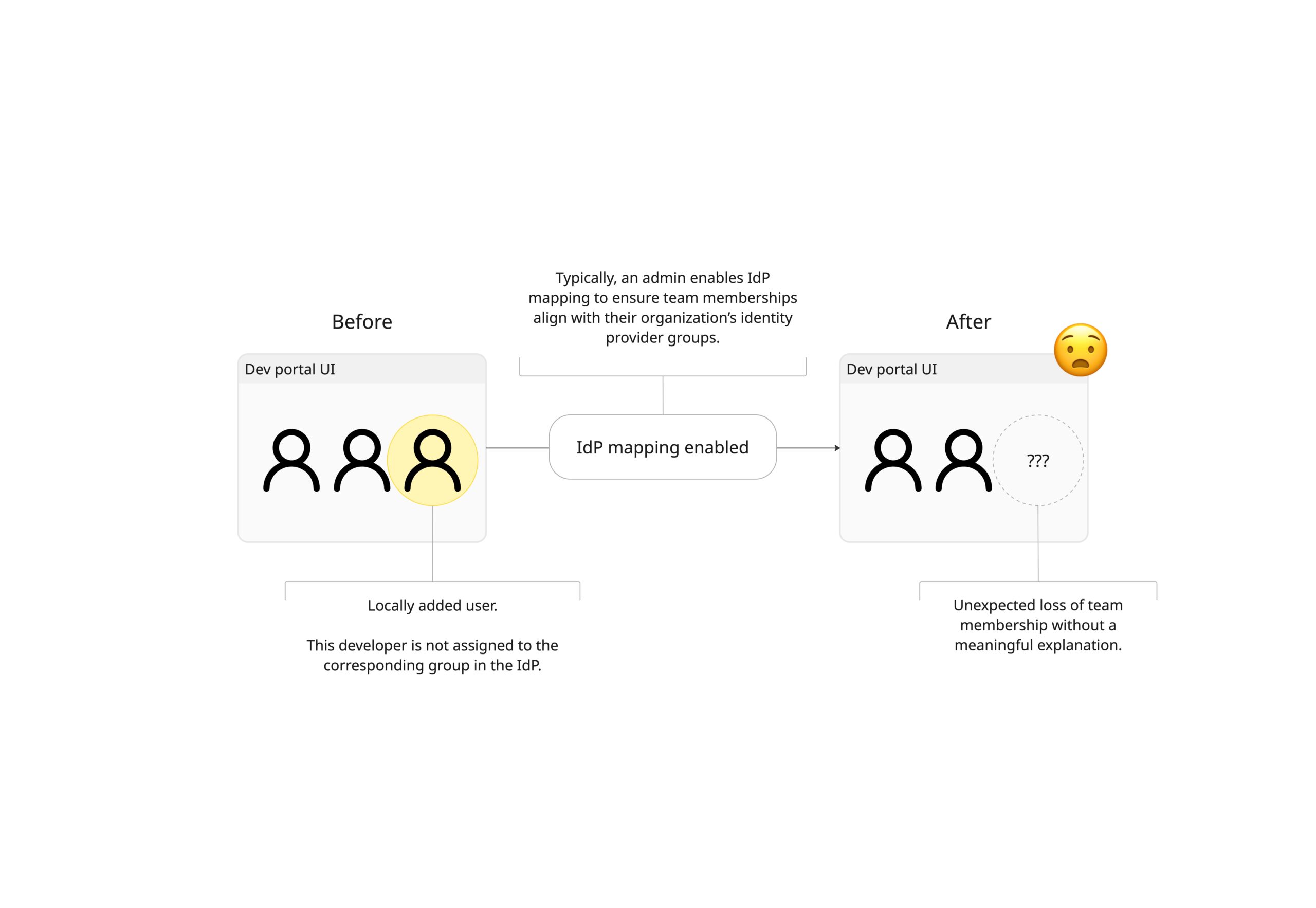

Enabling IdP mapping shifts control of team membership to the identity provider. A locally added developer who is missing from the corresponding IdP group can unexpectedly lose membership when synchronization runs.

Investigating unexpected behavior

My initial assumption was that the removal behavior itself was undesirable and should be changed. Before proposing a solution, I traced the scenario across Dev Portal and consulted engineers with deeper ownership of the platform’s identity architecture.

That investigation revealed an important distinction: once team mapping is enabled, the external identity provider intentionally becomes the source of truth for team membership.

If a developer belongs to a mapped team locally but isn’t assigned to its corresponding group in the IdP, synchronization removes that local membership. This was established identity-management behavior rather than a technical defect. That finding changed the problem I needed to solve.

Preserving expected system behavior while fixing the experience around it.

Once I understood why synchronization behaved this way, removing the behavior was no longer an appropriate solution. The actual usability problem was visibility.

A customer could transition from manually managing teams to IdP-managed membership without understanding that they were also changing which system controlled those relationships. Synchronization could subsequently modify team membership without any meaningful indication of why. I decided to focus on making its consequences understandable before they became surprising.

Identity Provider Setup - OIDC and SAML Options — The setup screen offers OIDC and SAML configuration before team mapping, guiding administrators through the prerequisite connection.

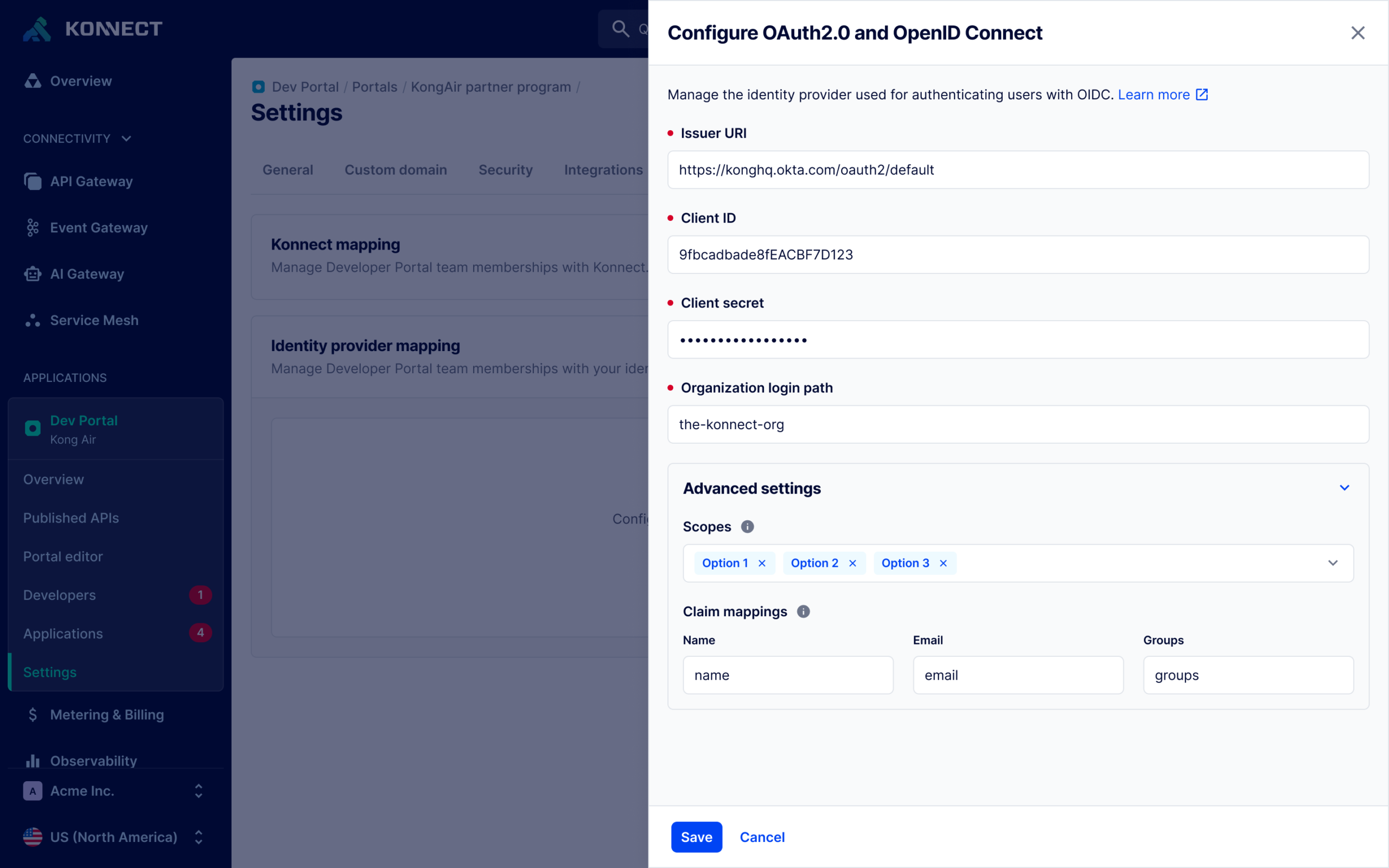

OIDC Configuration - Advanced Settings and Claim Mapping — OIDC settings bring connection details and identity claims together, helping administrators specify where developer information and group membership come from.

Team Mapping - OIDC Configuration Success — Confirmation that OIDC is configured gives administrators a clear next step: connecting identity provider groups to portal teams.

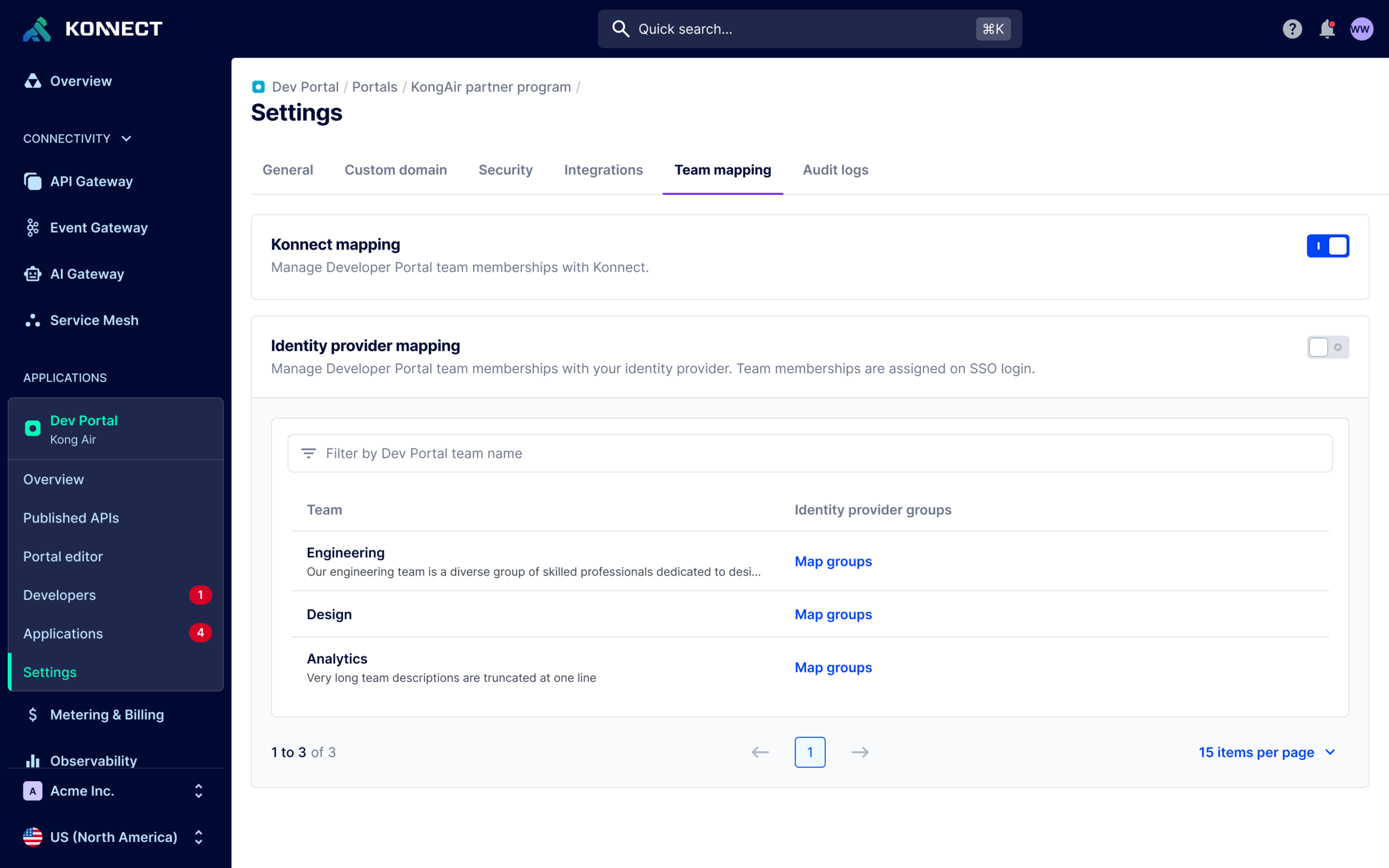

Team Mapping - Initial Settings — Team mapping settings distinguish Konnect-managed membership from IdP-managed membership, helping administrators understand which system controls access.

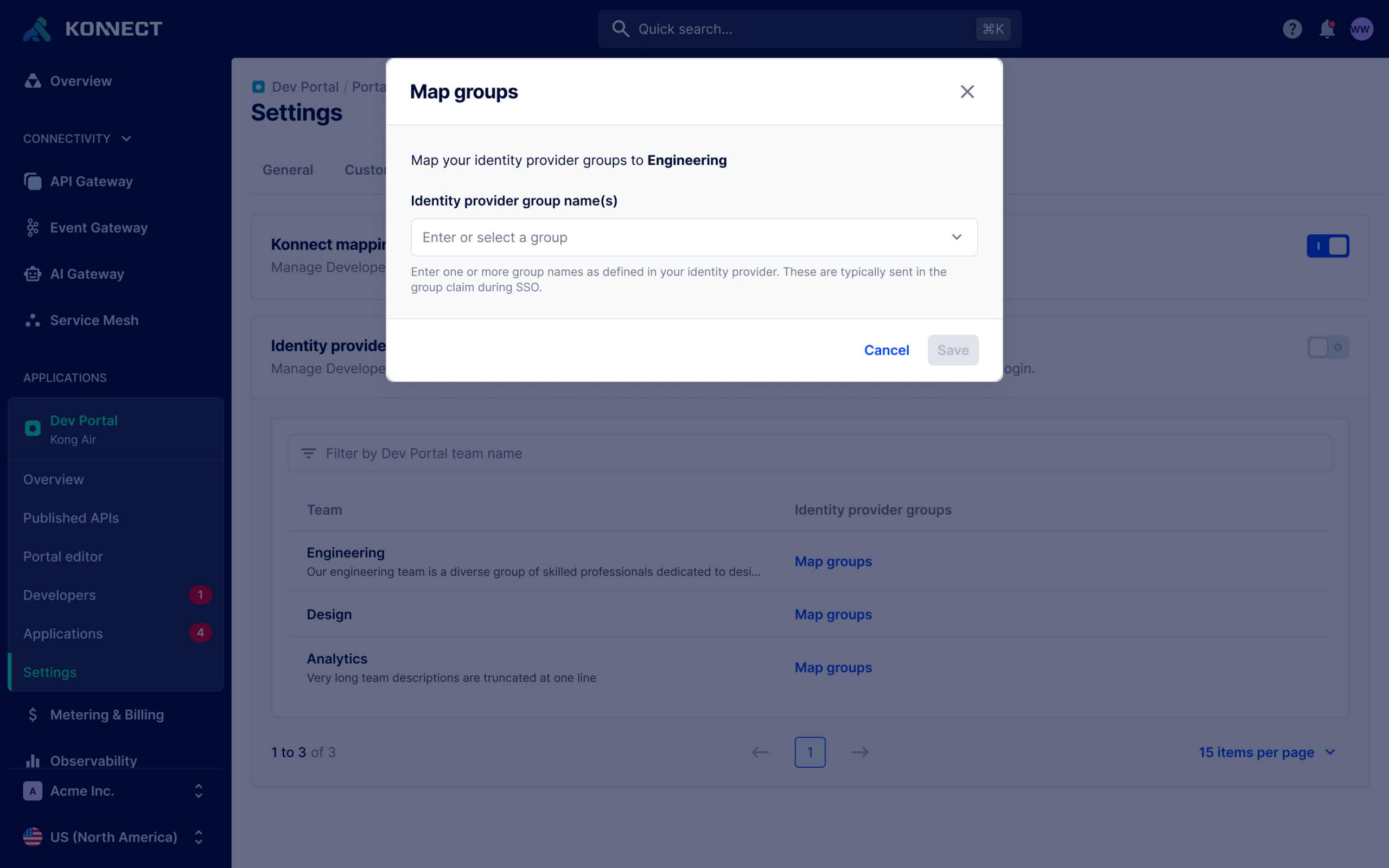

Map Groups - Empty Selection — Saving stays unavailable until a group is selected, preventing administrators from creating an empty mapping.

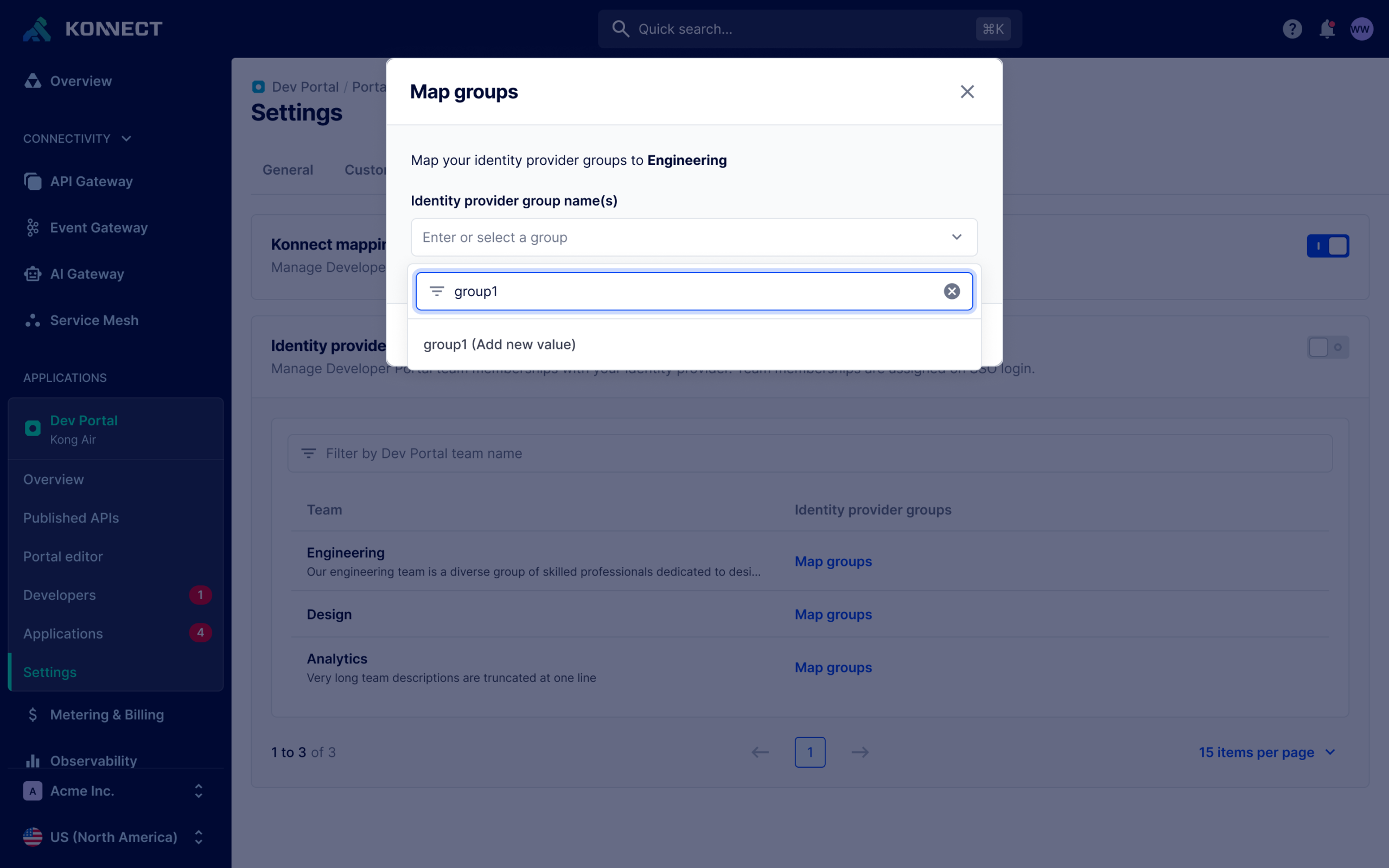

Map Groups - Search and Add Group — Administrators can search for or enter an IdP group name while mapping a team, keeping group selection in the context of the team they are configuring.

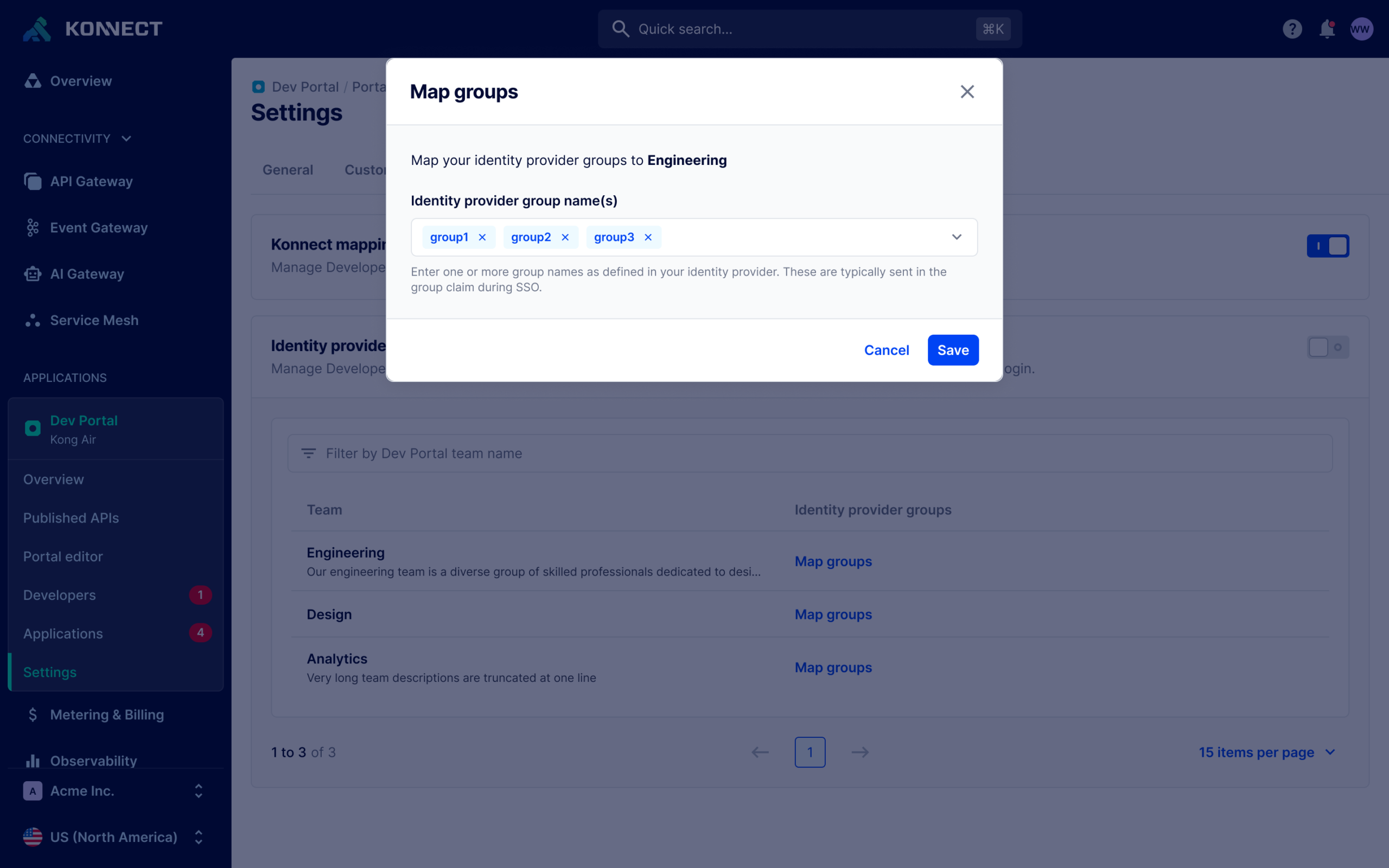

Map Groups - Selected Identity Provider Groups — Administrators can map multiple Identify provider groups to a dev portal team.

Team Mapping - Mapping Saved Successfully — A success message and visible group assignments confirm that the team mapping was saved, giving administrators immediate feedback on their change.

Team Mapping - Configured Group Assignments — Group assignments appear beside each team, making it easy to review configured mappings and identify teams that still need one.

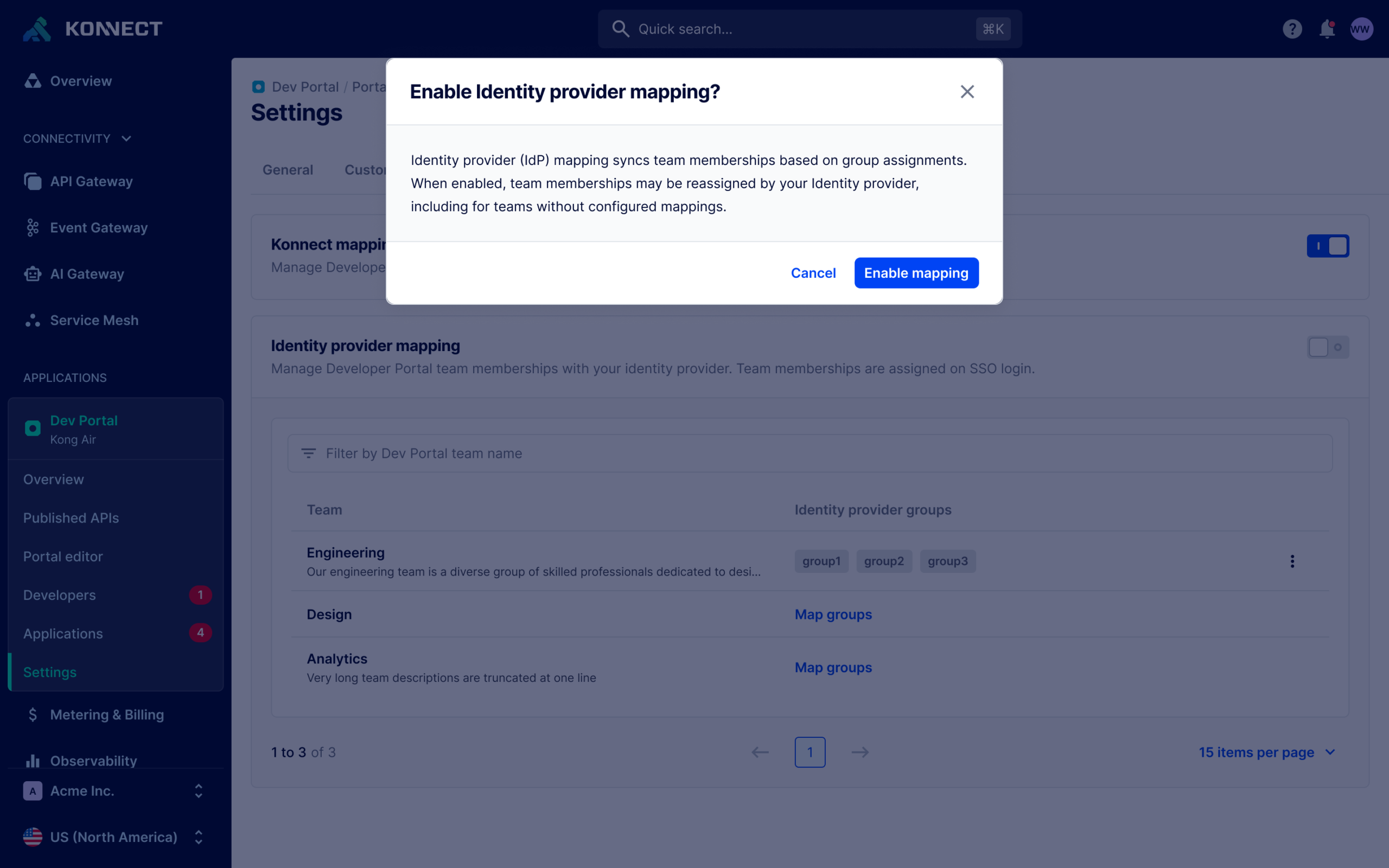

Enable IdP Mapping - Membership Replacement Warning — Before IdP mapping is enabled, a warning explains that sign-in can reassign team memberships, including for teams without mappings. Administrators can review the consequences before switching control to the IdP.

Making the source of truth explicit

I designed changes throughout the relevant team-management experience to clearly communicate when a team was managed through an identity provider.

Once mapping was enabled, the interface established that membership was now governed externally rather than within Dev Portal. This gave administrators the context necessary to understand why membership might change and, importantly, where they needed to make future changes.

The interface would communicate a change in system ownership. Removing controls that no longer represented valid actions.

Communicating the new source of truth wasn’t enough.

If the interface continued allowing administrators to add, remove, or modify membership locally, it would imply that Dev Portal still controlled information that was actually governed by the IdP.

I therefore disabled or removed membership-management actions where IdP mapping made those actions invalid. This aligned the available controls with the underlying system model and prevented administrators from making local changes that could later be overwritten during synchronization.

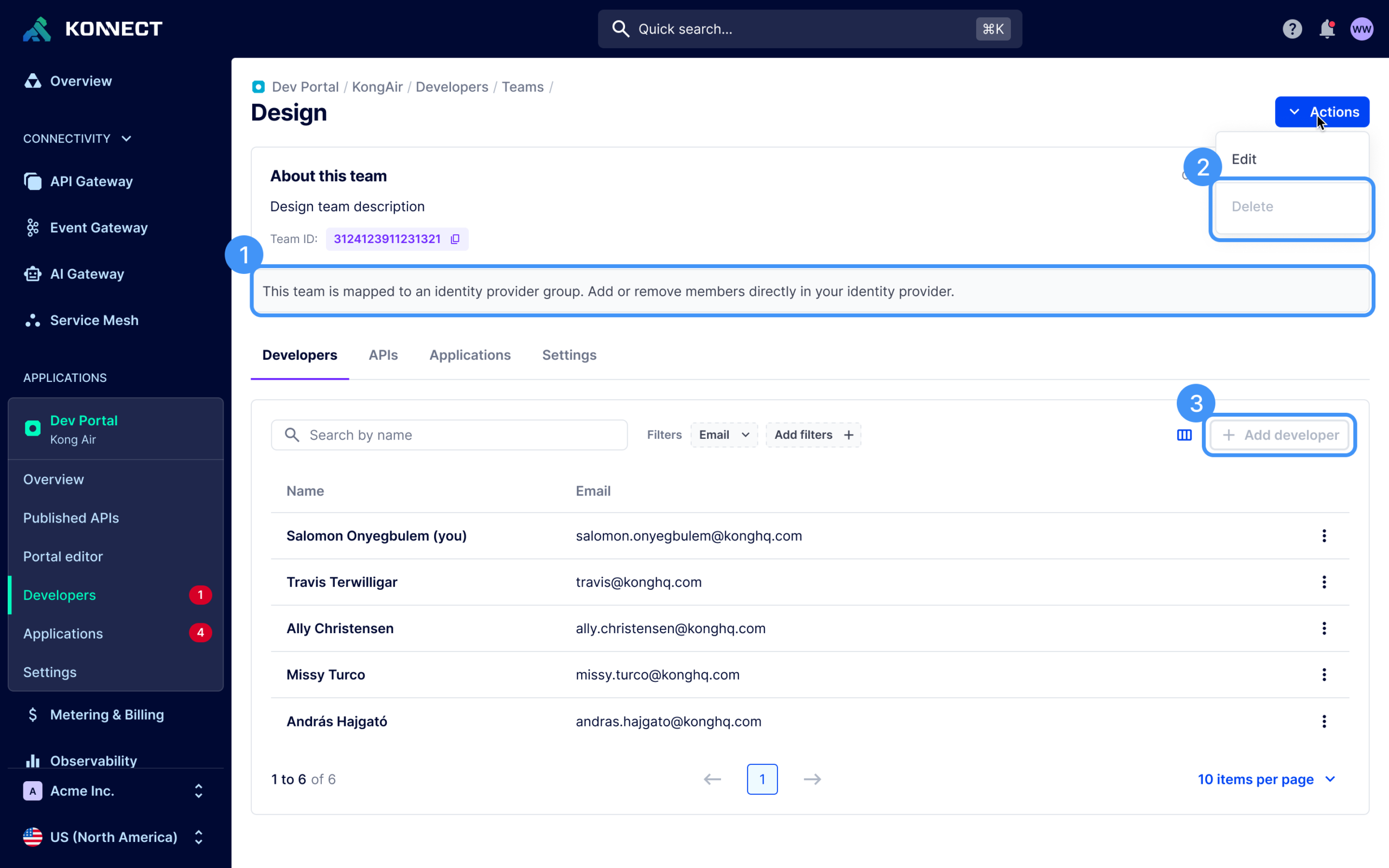

A membership notice directs administrators to the IdP, while disabled delete and add-developer controls prevent changes that conflict with external ownership.

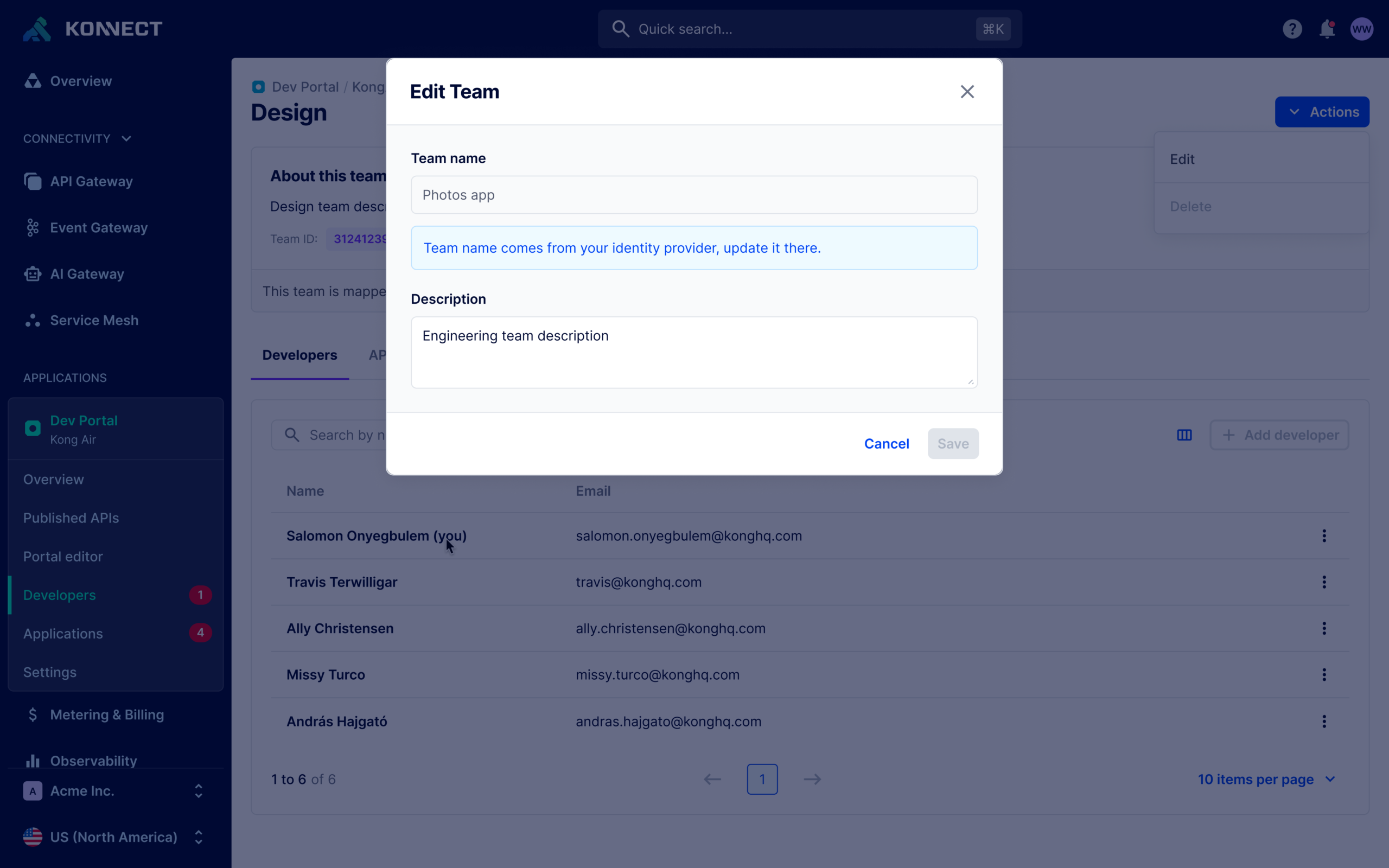

The team name is read-only because it comes from the IdP, while the description remains editable. Administrators can see which details they can change here and which must be updated elsewhere.

Designing for the edge cases before implementation.

I mapped the relevant states and edge cases independently before reviewing the proposed behavior with Engineering. The exercise helped determine where IdP ownership needed to be communicated, which actions should remain available, how mapped teams should be distinguished, and how the experience should behave as teams transitioned between locally and externally managed states.

Engineering input helped refine those decisions and ensure the resulting interaction model accurately reflected the platform’s identity behavior. I then translated the agreed model into production-ready screens and specifications for implementation.

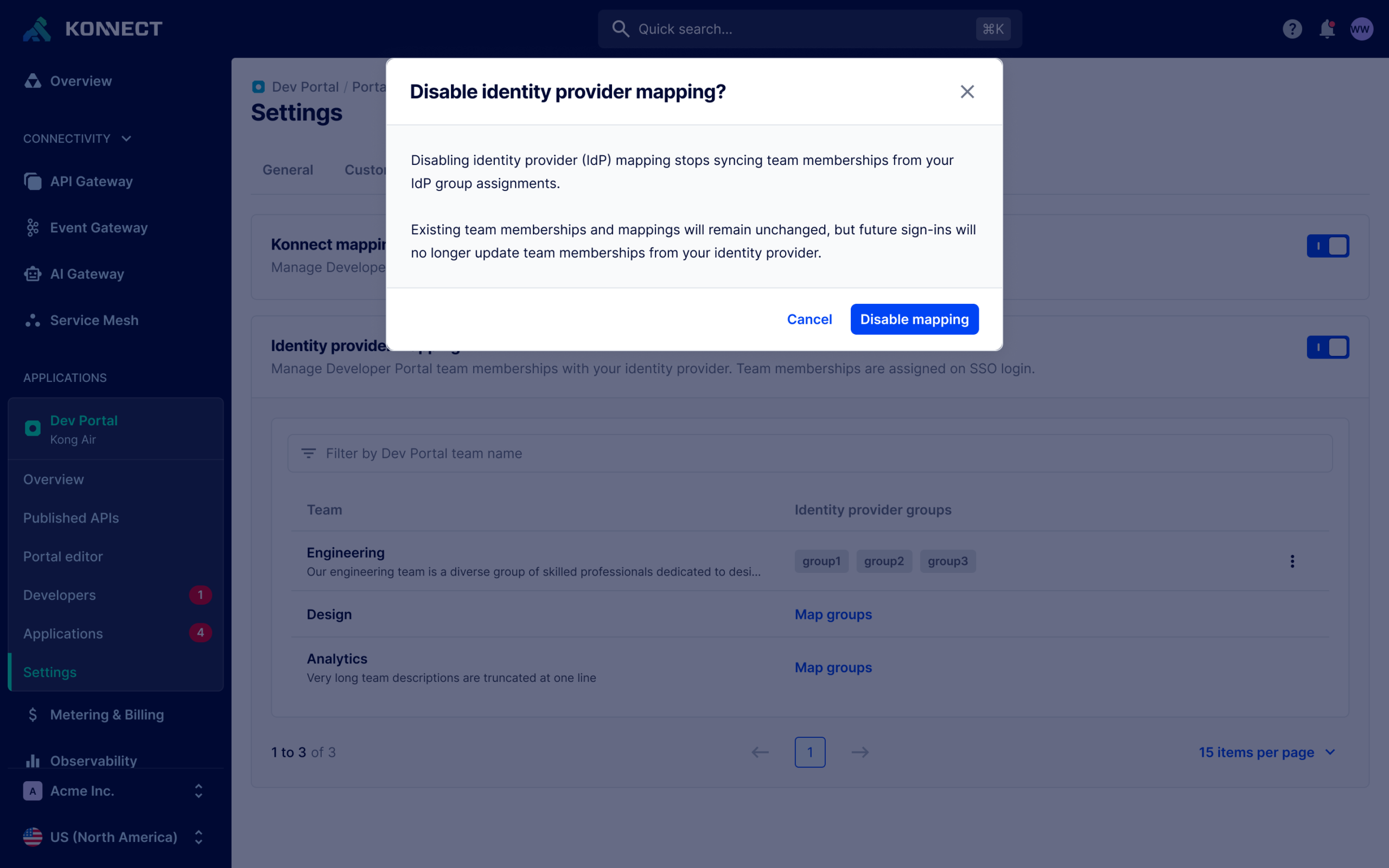

Disable IdP Mapping - Confirmation Dialog — The disable confirmation explains that existing memberships and mappings remain, while future sign-ins stop updating membership from the IdP. Administrators know what will change before proceeding.

Team Mapping - IdP Mapping Disabled Confirmation — Disabling IdP mapping leaves configured group assignments visible, making it clear that stopping synchronization does not erase the setup.

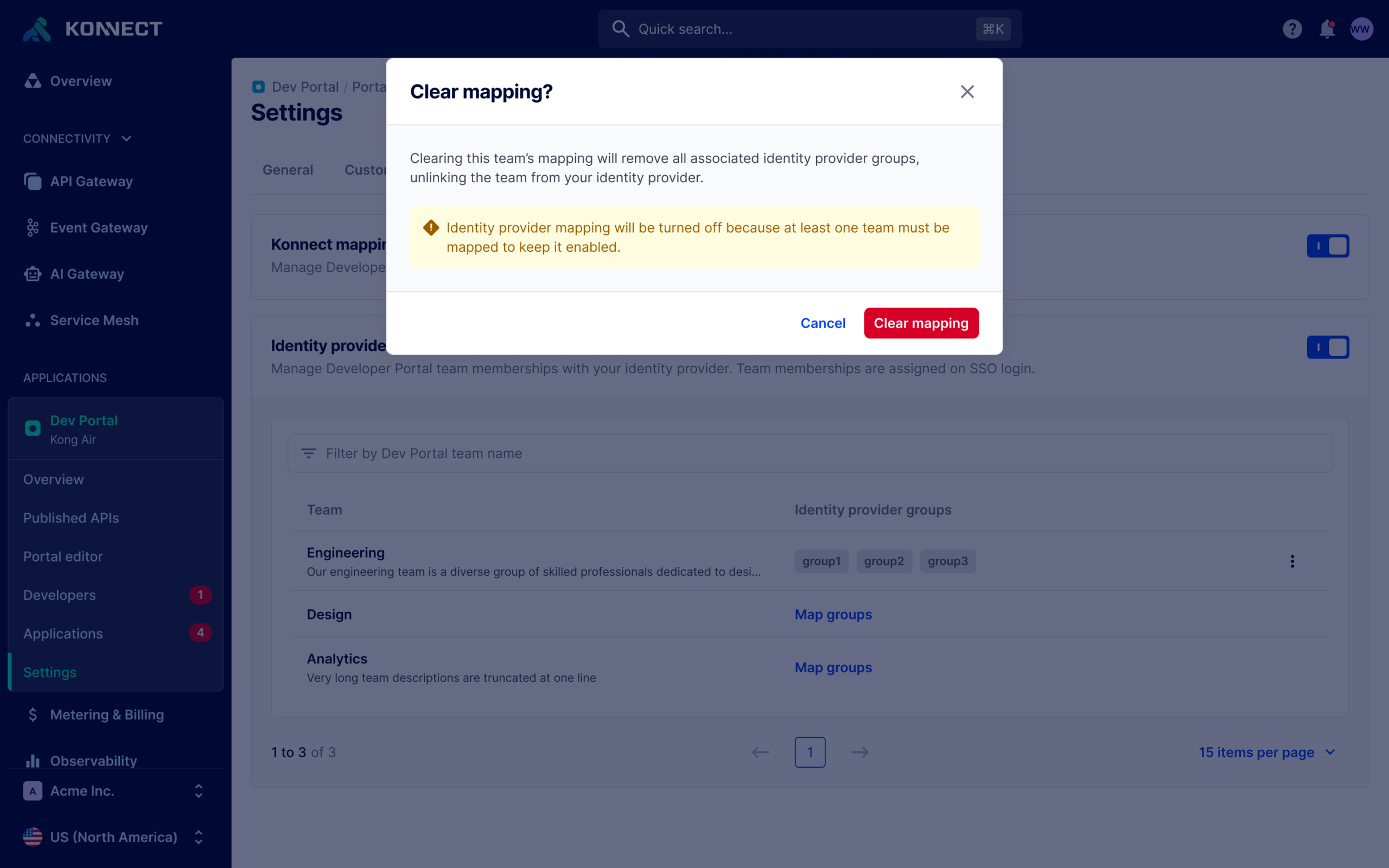

Clear Mapping - Confirmation and Last Team Warning — The clear-mapping dialog explains which group connections will be removed and warns when clearing the last mapped team will also disable IdP mapping.

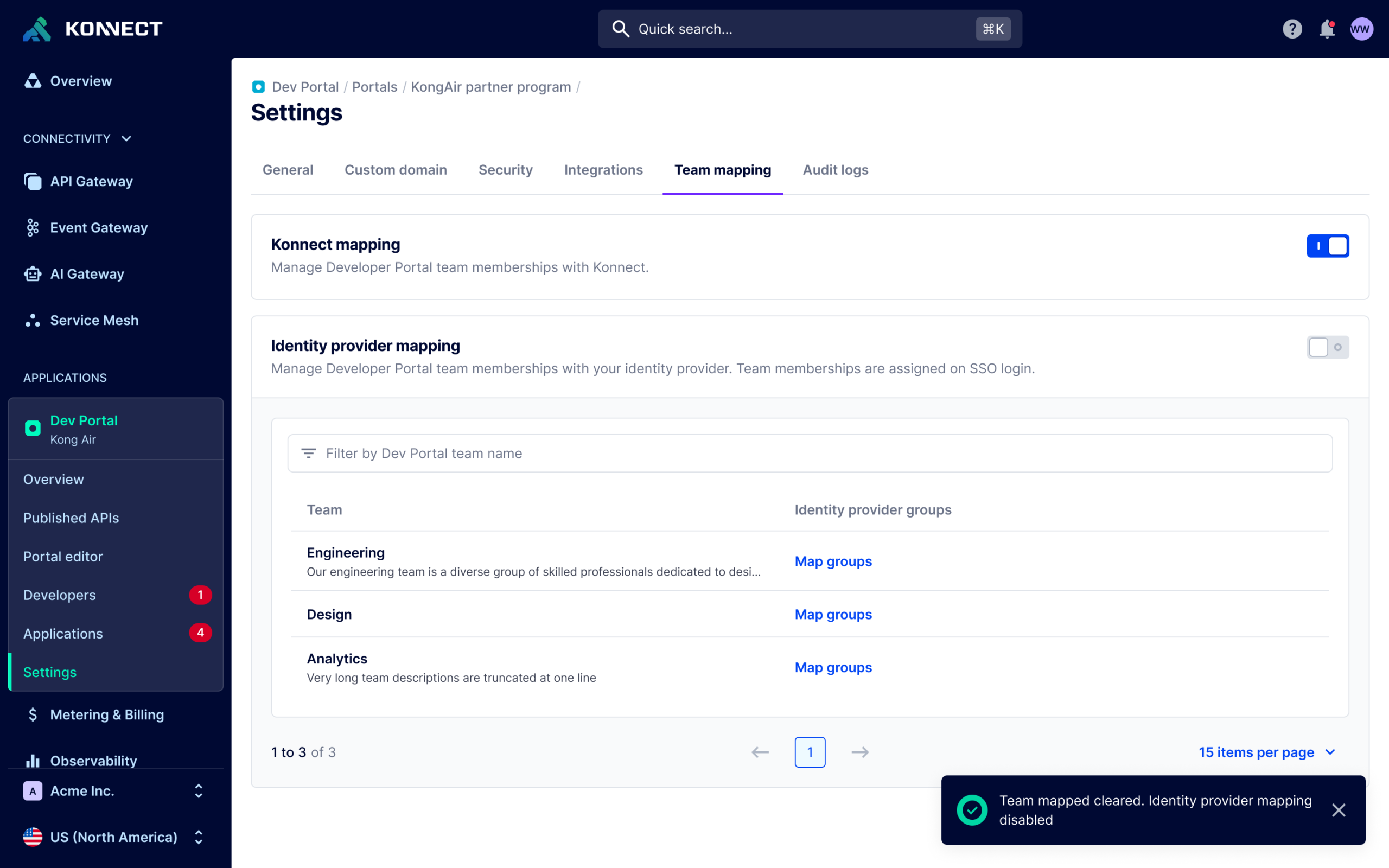

Team Mapping - Mapping Cleared and IdP Mapping Disabled — Clearing the last team mapping also disables IdP mapping. The confirmation makes both changes visible so administrators are not left guessing about the current state.

Preventing a problem users shouldn’t have to discover themselves.

The resulting experience preserved the existing identity architecture while making its behavior considerably more transparent.

Existing customers gained clearer indications that mapped team membership was controlled by their identity provider, while future customers received that context as part of the experience rather than discovering it after someone unexpectedly lost access.

Ultimately, the system behavior didn’t need to change 👍
